    Fuse Holder,10A Manual Cap PCB Mount,5 x 20mm Cartridge Fuse,250VAC

    Short Description:

    Product Name:Fuse Holder/20mm pcb fuse holder model:H3-24 Voltage breakdown: AC2500 1minute  insulation resistance:DC 500V 100MΩ Min Rating: 10A 250VAC Temperature tolerance:-20℃ -180 ℃ Flammability class:UL94V0 Standard: IEC-60335-1 GB_9364.6-2001 Certification: ISO9001, ROHS, Mounting Ways:PCB Mount Material:Thermosetting silicone PBT, brass International Approvals:CE, CQC, UL,VDE Fuse size:5*20mm Fuse Application:Suitable for circuit board installation of all electronic appliances,...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    1. Product Name:Fuse Holder/20mm pcb fuse holder
    2. model:H3-24
    3. Voltage breakdown: AC2500 1minute
    4. insulation resistance:DC 500V 100MΩ Min
    5. Rating: 10A 250VAC
    6. Temperature tolerance:-20℃ -180 ℃
    7. Flammability class:UL94V0
    8. Standard: IEC-60335-1 GB_9364.6-2001
    9. Certification: ISO9001, ROHS,
    10. Mounting Ways:PCB Mount
    11. Material:Thermosetting silicone PBT, brass
    12. International Approvals:CE, CQC, UL,VDE
    13. Fuse size:5*20mm Fuse
    14. Application:Suitable for circuit board installation of all electronic appliances, power supplies and other equipment

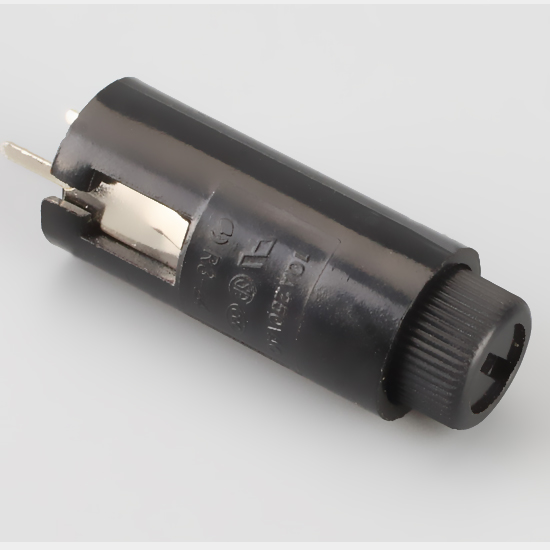

     H3-24

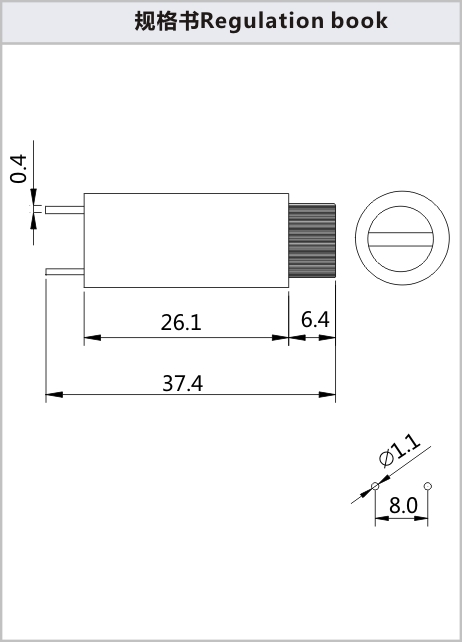

    H3-24-1

    Welcome to the wide range of PCB fuse holders that have been designed to accept the popular 5x20mm glass fuses. These unique one piece design of these circuit board fuse holders eliminate all of the problems associated with using fuse clips on a PCB. Additionally, these circuit board fuse holers are easier to install than fuse clips, they cost less than fuse clips and depending on the model you select they make it easier and safer to install and remove glass fuses.
