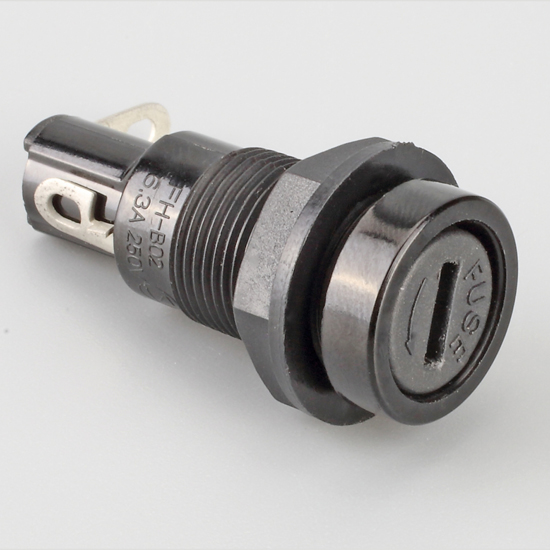

    Panel Mount Fuse Holder-H3-02

    Short Description:

    fuse boxes are a type of resistor with the main purpose of providing overcurrent protection in various different electrical applications. Electrical fuses and the compatible accessories such as holders, blocks, and panels designed to meet circuit protection requirements in electric and vehicle applications.  1.Product Name:Fuse Holder fuse base 2.Model:H3-02 3.Voltage breakdown:AC2500 1minute 4. insulation?resistance:DC 500V 100MΩ M 5.Rating:10A 250VAC 6.Temperature tolerance:-20℃ -...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    fuse boxes are a type of resistor with the main purpose of providing overcurrent protection in various different electrical applications. Electrical fuses and the compatible accessories such as holders, blocks, and panels designed to meet circuit protection requirements in electric and vehicle applications.

    1.Product Name:Fuse Holder fuse base
    2.Model:H3-02
    3.Voltage breakdown:AC2500 1minute
    4. insulation?resistance:DC 500V 100MΩ M
    5.Rating:10A 250VAC
    6.Temperature tolerance:-20℃ -150 ℃
    7.Flammability class:UL94V0
    8.Standard: IEC-60335-1 GB_9364.6-2001
    9.Certification: ISO9001, ROHS,
    10.Mounting Ways:PCB Mount
    11.Material:Thermosetting glue, Huang Tongtong
    12.International Approvals:CE, CQC, UL,VDE
    13.Fuse size:5*20mm Fuse
    14.Application: It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
