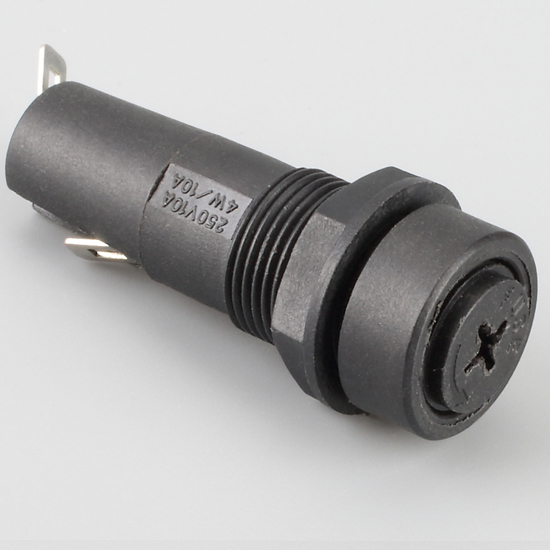

    Panel Mount Fuse Holder-H3-16

    Short Description:

    When it comes to protecting wires against overcurrents, hinew has UL rated 10 Amp at 250 Volt fuse holders to meet your needs. Choose from PCB fuse holders, panel mount fuse holders, and inline fuse holders. Each hinew fuse holder ensures a shock-safe, reliable, cost-effective current protection solution. 1.Product Name:Fuse Holder fuse base 2.Model:H3-16 3.Voltage breakdown: AC2500 1minute 4.insulation?resistance:DC 500V 100MΩ M 5.Rating: 10A 250VAC 6.Temperature tolerance:-20℃ -150 ℃ 7....


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    When it comes to protecting wires against overcurrents, hinew has UL rated 10 Amp at 250 Volt fuse holders to meet your needs. Choose from PCB fuse holders, panel mount fuse holders, and inline fuse holders. Each hinew fuse holder ensures a shock-safe, reliable, cost-effective current protection solution.

    1.Product Name:Fuse Holder fuse base
    2.Model:H3-16
    3.Voltage breakdown: AC2500 1minute
    4.insulation?resistance:DC 500V 100MΩ M
    5.Rating: 10A 250VAC
    6.Temperature tolerance:-20℃ -150 ℃
    7.Flammability class:UL94V0
    8.Standard: IEC-60335-1 GB_9364.6-2001
    9.Certification: ISO9001, ROHS,
    10.Mounting Ways:Panel installation
    11.Material:Thermosetting glue, Huang Tongtong
    12.International Approvals:CE, CQC, UL,VDE
    13.Fuse size:5*20mm Fuse
    14.Application: It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.

    H3-16-1
