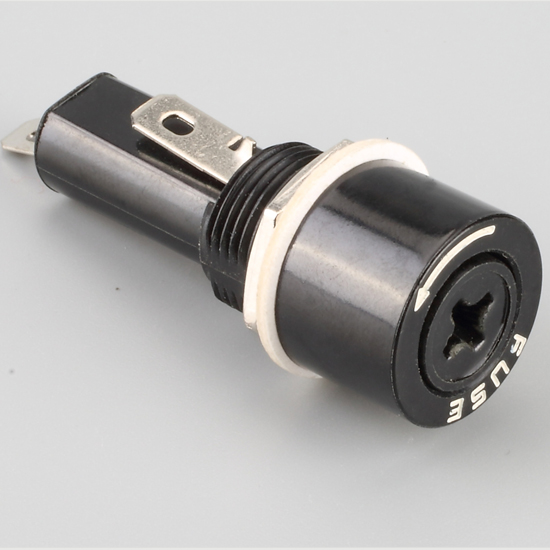

    panel mount fuse holder 20 amp 12V | HINEW-H3-22

    Short Description:

    1.Voltage breakdown: AC2500 1minute

    2.insulation?resistance:DC 500V 100MΩ M

    3.Rating: 10A 250VAC

    4.Temperature tolerance:-20℃ -150 ℃

    5.Flammability class:UL94V0

    6.Standard: IEC-60335-1 GB_9364.6-2001

    7.Certification: ISO9001, ROHS,

    8.Mounting Ways:Panel installation


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    HINEW’s panel mount fuse holders Carrying world-wide safety approvals from UL, VDE, all types are manufactured from high grade flame retardant nylon and polyester materials.these compact and shock safe;panel fuse holders are ideal solutions for 5 x 20mm,6 x 30mm and 10 x 18mm;10 amp,15a,20 amp,30 amp,60 amp,300 amp,500 amp fuses.

    1.Product Name:Fuse Holder | fuse box panel

    2.Model:H3-22

    3.Voltage breakdown:AC2500 1minute

    4.insulation resistance:DC 500V 100MΩ M

    5.Rating:10A 250VAC

    6.Temperature tolerance:-20° C -150° C

    7.Flammability class:UL94V0

    8.Standard:IEC-60335-1 GB_9364.6-2001

    9.Certification:ISO9001, ROHS,

    10.Mounting Ways:Panel installation

    11.Material:Thermosetting glue, Huang Tongtong

    12.International Approvals:CE, CQC, UL,VDE

    13.Fuse size:6*30mm Fuse

    14.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.

    H3-22-1

    http://www.hzhinew.com/panel-mount-fuse-holder-h3-22.html

    pcb fuse holder panel mount 6x30mm

    This video will show you how to reset a tripped circuit breaker switch on a fuse boxes panel, and what to look for if they are not labeled.
