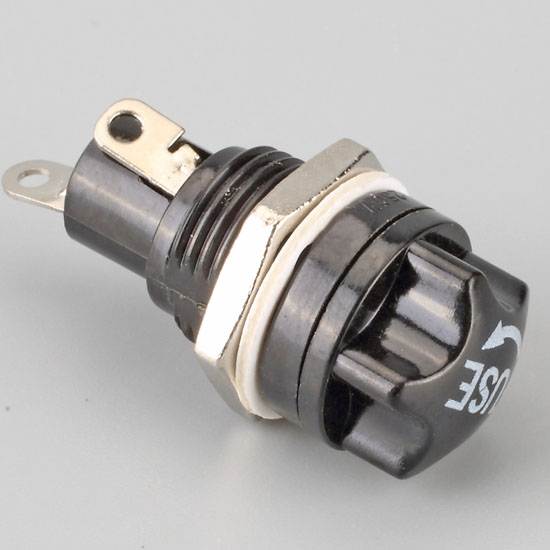

    screw-cap panel-mount fuse holder,30a,250vac | HINEW-H3-26

    Short Description:

    Our blade fuse holder,mini fuse holder and waterproof inline fuse holder can be easily installed and replaced.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    1.Product Name:Fuse Holder | fuse holder panel mount

    2.Model:H3-26
    3.Voltage breakdown:AC2500 1minute
    4.insulation resistance:DC 500V 100MΩ M
    5.Rating:10A 250VAC
    6.Temperature tolerance:-20 ° C -150 ° C
    7.Flammability class:UL94V0
    8.Standard:IEC-60335-1 GB_9364.6-2001
    9.Certification: ISO9001, ROHS,
    10.Mounting Ways:Panel installation
    11.Material:Thermosetting glue, Huang Tongtong
    12.International Approvals:CE, CQC, UL,VDE
    13.Fuse size:5*20mm ROHS
    14.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.

    H3-26-1

    http://www.hzhinew.com/panel-mount-fuse-holder-h3-26.html

    panel mount mini fuse holder
