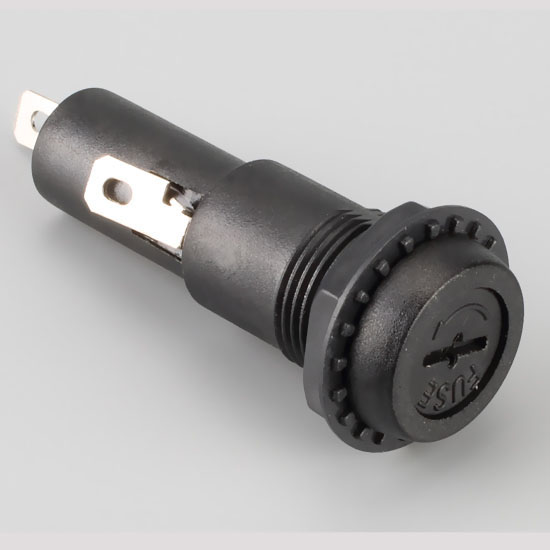

Panel Mount Fuse Holder-H3-44 | HINEW

Short Description:

Features and Benefits of Panel Mount Fuse Holders
• Reduce risk of damage to electrical components
• Fully enclosed plastic casing
• Small, compact and neat
• Wide variety of fuse sizes available to suit any application


  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

    Panel mount fuse holders are a device that provides a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.

    Fuse holders are devices for containing, protecting and mounting fuses. Fuse holders come in two basic types, open or fully enclosed. Open fuse holder types are fuse clips, fuse blocks, socket and plug-on cap varieties. The fully enclosed variety may use a fuse carrier that is inserted into a holder or have other means to fully enclose the fuse.

    Where might I use one?

    • Lighting

    • Illuminated signs

    • Vehicle electrical circuits

    • general circuit protection

    Quick Details

    1.Product Name:Fuse Holder | Panel Mount Fuse Holder

    2.Model:H3-44

    3.Voltage breakdown:AC2500 1minute

    4.insulation?resistance:DC 500V 100MΩ M

    5.Rating:15A 250VAC

    6.Temperature tolerance:-20° C -150° C

    7Standard:IEC-60335-1 GB_9364.6-2001

    9.Certification:ISO9001, ROHS,

    10.Mounting Ways:Panel installation

    11.Material:Thermosetting glue, Huang Tongtong

    12.Fuse size:5*20mm,6*30 ROHS,

    13.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.

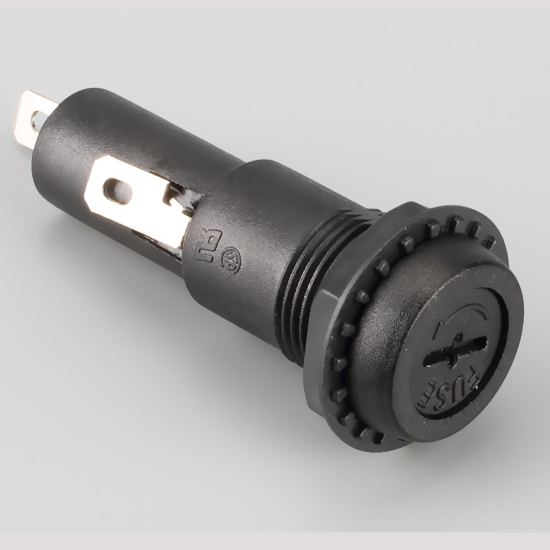

    H3-44-1

    Videos

    People also ask

     1.Mounting

    Mounting choices for fuse holders include fuse block, fuse clip, panel mount, PC mount, snap mount, and in-line mount. Important environmental parameters to consider when specifying fuse holders include operating temperature.

    2.Standards

    Approvals and ratings for fuse holders include UL, CSA, BSI, VED, IEC (UMF), SEMKO, and Dentori.

    The UL Listing guarantees that a fuse has been manufactured in full compliance with the UL 248-14 standard. UL recognition, c-UL Listing, c-UL Recognition, c-UL-us Listing and c-UL-us Recognition does not imply full compliance with UL-248-14.

    The BSI British approval guarantees that a fuse has been manufactured in full compliance with the appropriate section of IEC 60127 (BS 4265) standard.

    CSA Canadian approval that guarantees the a fuse or fuse holder has been manufactured in full compliance with the CSA C22.2 No. 248.14 or CSA C22.2 No. 39 standard, respectively.

    IEC approval applies to Universal Modular Fuses (UMF) that have been found to be compliant with IEC 60127-4.

    The VDE German approval guarantees that a fuse or fuse holder has been manufactured in full compliance with the appropriate section of the IEC 60127 standard.
