Do you know anything about fuse holders?Below, fuse holder manufacturer Hinew takes you through our common fuse holders.

Classification and main requirements of fuse holders:

According to the classification of the installation fuse, the fuse holder can be divided into the fuse holder and the insurance piece seat.

According to the size of the fuse, it can be divided into large fuse holder, medium fuse holder and small fuse holder.

According to the material points, can be divided into plastic fuse holder, bakelite fuse holder.

According to environmental protection points, can be divided into environmental protection fuse holder, non-environmental protection fuse holder.

According to the way of installation: can be divided into lead type fuse box and circuit board type fuse holder, instrument panel installation fuse holder.

Commonly used models are (for the size of the applicable fuse tube) : 5×20mm fuse holder, 6×30mm fuse holder;

Car fuse holder (suitable for insert type) : small insert insert fuse holder, medium insert insert fuse holder, large insert insert fuse holder.

fuse holder is applied in social life and production more extensive, on the market, all sorts of fuse holder have, everybody wants to choose according to actual demand.

  • According to the classification of mounting fuse:A safety tube seat and a safety plate seat are provided
  • According to the size of the fuse: Large, medium, small, three specifications of the fuse seat
  • According to the material, there are two kinds of materials: plastic and bakelite.
  • according to environmental protection or not:Environmental protection, non-environmental protection fuse holder.
  • According to the installation method:Lead type fuse box, circuit board type and instrument panel to install fuse holder.

An improved structure of a fuse holder, especially a fuse holder having an indication of the condition of a fuse and requiring no replacement of its self-compound fuse.It includes:

1. A conductive body with a plurality of screw holes connected with each other respectively, each screw hole is threaded into a connecting screw;A plurality of second conducting bodies each provided with a screw hole and a jack hole communicated with each other, each screw hole is threaded into a contact screw;

2. Several self-compound fuses are electrically connected between the first conductive body and the second conductive body;

3. A top side is fixedly provided with the base of the one and two conductive bodies;An upper cover covering the base;

4. A circuit board fixedly arranged on the upper cover and provided with a plurality of light-emitting components is electrically connected with the first conductive body and each second conductive body.

The main type of fuse holder can be divided into: panel mounting fuse holder, PCB mounting fuse holder, lead type fuse holder and automobile fuse holder;

Panel mounting fuse holder: mostly used for electrical equipment, such as power amplifier, DVD, speakers, massage chair and other electrical equipment;

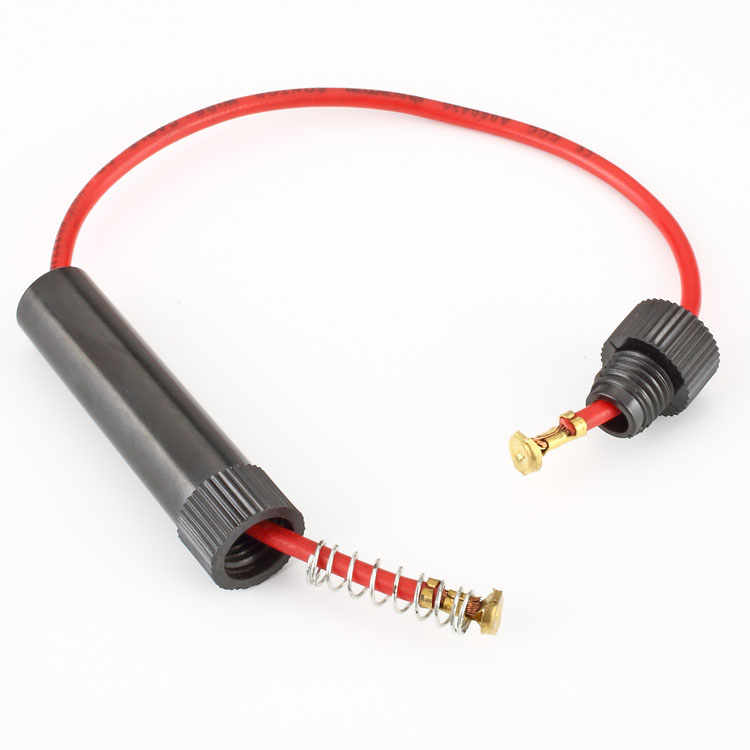

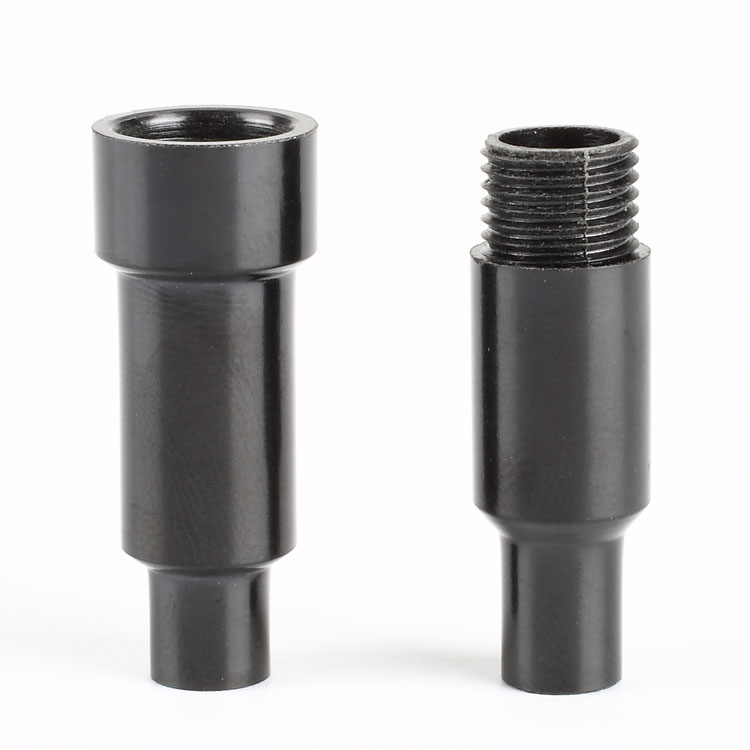

Inline fuse holder: mostly used for the connection of small household appliances and industrial machinery wiring harness;

PCB fuse holder: mostly used in small home appliance control board) and fuse holder (mostly used in small home appliance control board).

The automobile fuse holder can be divided into:

1.Inline automobile fuse holder

2.Panel mount car fuse holder

3.A car fuse clip

I believe that after reading, I have a certain understanding of the fuse holder.We are an fuse holder supplier from China. If you don't understand, please consult us!
