5mm x 20mm fuse holder,250v,10a,H3-11B | HINEW

Short Description:

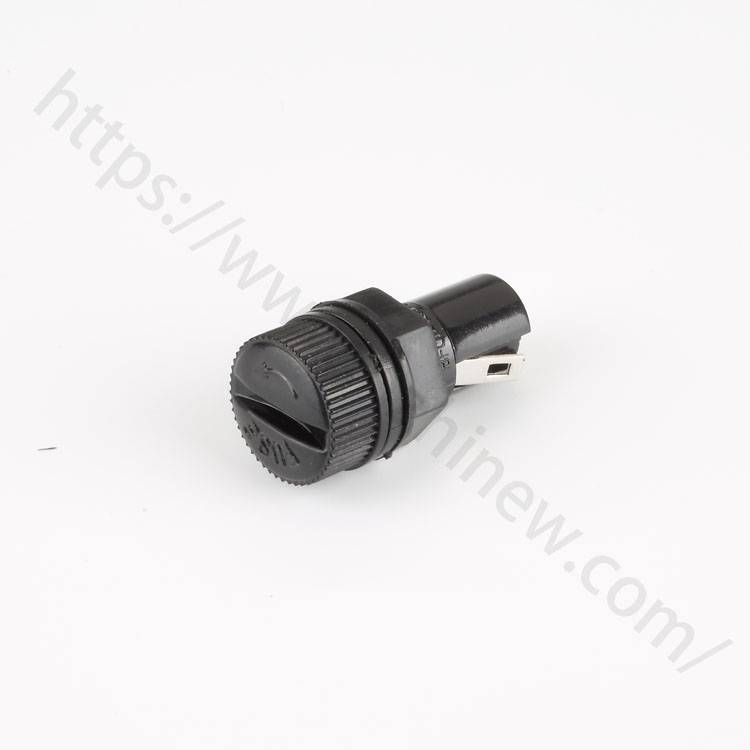

Panel mount fuse holders feature quick connect wire terminals for easy wiring installation. The locking nut holds the panel fuse holder in place and the recessed screw cap retains the fuse for easy insertion and removal.5mm x 20mm fuse holder is a simple device that do an extremely important job. They provide a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.If you are interested in this product, please contact us and we will give you detailed product information.

  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

    HINEW provides several different options when it comes to your need for panel mount fuse holders and glass fuse holders. The glass fuse holder, panel mount, series includes finger accessible screw cap, recessed screw cap, snap lock panel mount and solder or quick connect terminals.

    Anywhere environmentally sealed circuit protection is needed for high vibration applications in the truck & bus, agriculture, construction, marine, & special vehicles industries.

    The panel mount fuse holder is a snap lock panel mount fuse holder that is inserted into the panel and locking tabs then hold it in place thereby eliminating the need for a locknut. The recessed screw cap holds the 5mm x 20mm fuse holder during installation and removal and solder connections make for quick and easy wiring.


    Electrical Characteristics Value
    Brand Name HINEW
    Model H3-11B
    Type Panel mount fuse holder
    Rated Current 10A
    Rated Voltage: 250V
    Fuse Size: 5x20mm
    Material PBT
    Colour Black

    People also ask:

    5mm x 20mm fuse holder H3-11B Datasheet
