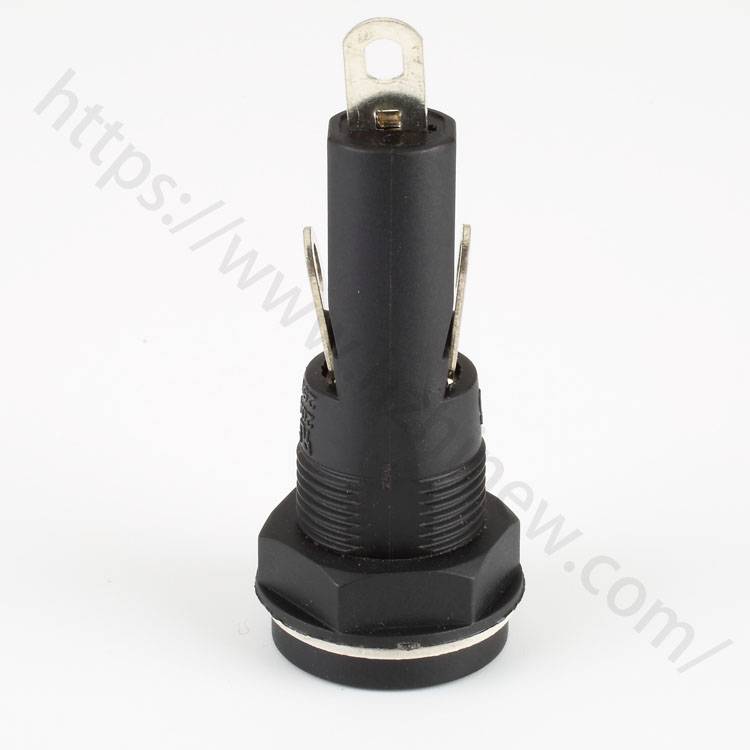

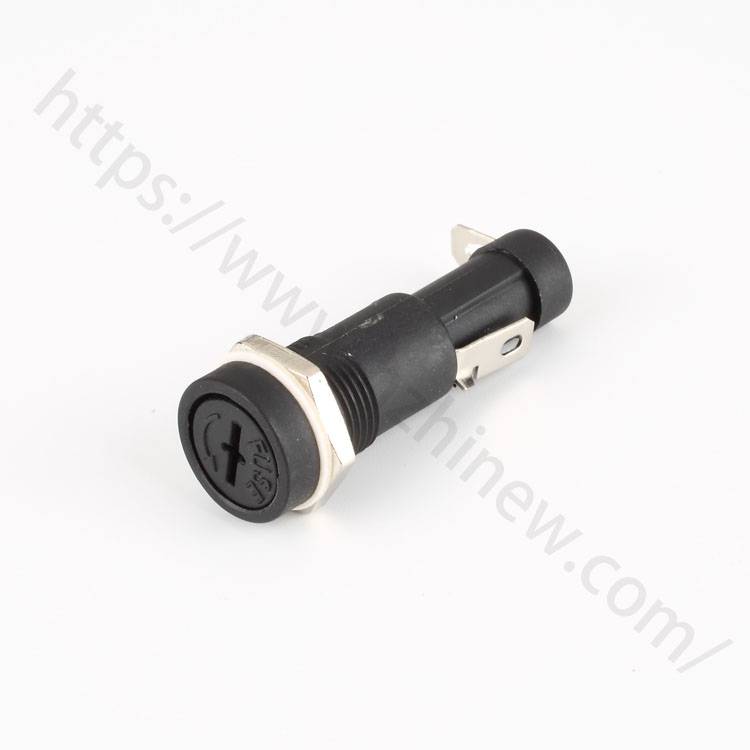

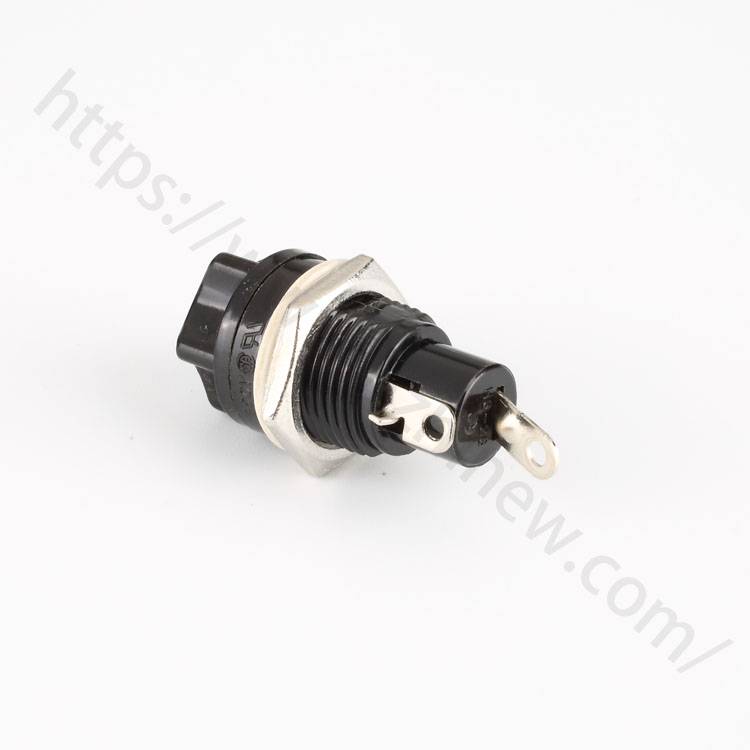

Shock-Safe Fuseholder, 6 x 30mmH3-13A/B | HINEW

Short Description:

These 6 x 30mm panel fuse holder is compatible with round fuse holder. They’re used with Class CC fuses to provide overcurrent protection of branch circuits, control circuits, lighting, transformers, and general loads. They’re used with midget fuses to supplement the primary branch-circuit fuse or breaker and provide backup overcurrent protection for lighting, solenoid, motor, and transformer circuits.

Shop wherever you’re , whenever you would like .Buy products online from our wide selection .Click & Collect your purchase in-store or we’ll deliver it to you.Zip pay is now available to get products online.Visit our Shop web page to find out more.

Cheap fuse holder panel mount:

Well and High Quality Control:

Prompt Delivery:

Customer’s Designs and Logos are Welcome:

Competitive Prices:

Send email to us Download as PDF

Product Detail

Product Tags

Description References

- Quick-conntect or solder terminals

https://www.hzhinew.com/6x30mm-panel-fuse-holder10a-250vh3-13b-hinew-product/

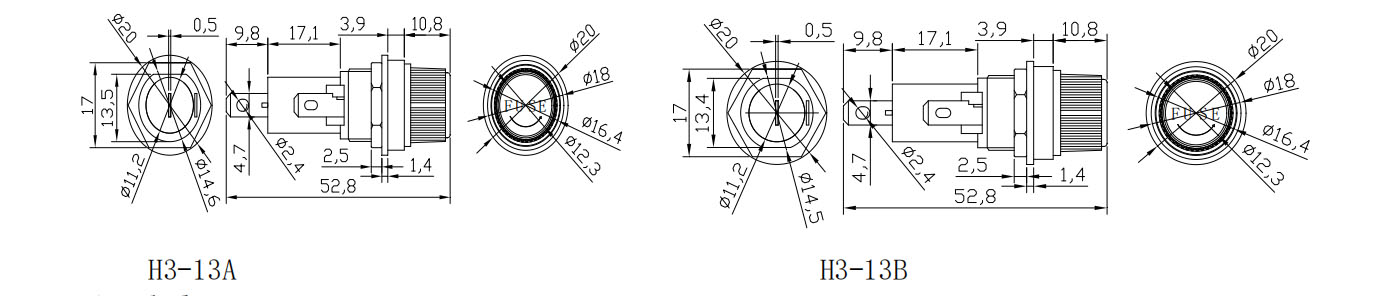

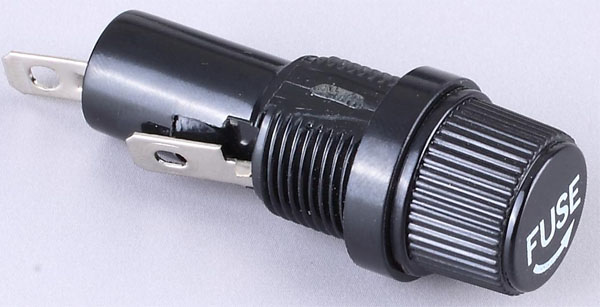

H3-13A

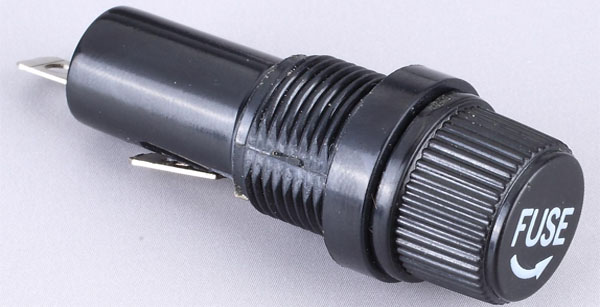

H3-13B

References Weblinks

pdf, General Product Information, Approvals, RoHS, CHINA-RoHS, e Store

Standards

● IEC60127-6

● UL4248-1/UL512 GB9364.6

Approvals

● UL File Number: E239034

Technical Data

Shocksafe Category Fuse-Link Mounting Mounting TerminalRated Voltage Rated Current Degree of Protection Protection Class	PC2 6×30mm Panel Mount,Front-Side Fixing Nut Solder or Quick-Connect 4.7×0.5 mm 250VAC 10A(UL) IP 67 Suitable for appliances with protection class 1 or 2 acc.to IEC 61140
			Soldering Methods Solderability	Solder and quick-connect terminals 350℃/2sec acc.to IEC 60068-2-20, Test Ta,method 2
			Resistance to Soldering Heat 350℃/10sec acc.to IEC 60068-2-20,
					Test Tb,method 2
			Contact Resistance <5m Ω at 20 mV Dielectric Strength >3kV between L-N
					>4kV between L/N-PE (50Hz;1 min)
			Impulse Withstand Voltage>4KV between L-N
Admissible Ambient Air Tem-40℃to85℃					>6kV between L/N-PE
Climatic Category Material:Socket Material:Terminals Unit Weight (Socket/Cap) Storage Conditions Product Marking		40/085/21 acc.to IEC 60068-1 thermosetting,black,UL 94V-0 Tin-Plated Copper Alloy 4.94 g/5.05 g 0℃ to 60℃,max.70%r.h. Type,Voltage,Current,Approvals	Insulation ResistanceOvervoltage Category Pollution Degree		>10MΩ between L-N >100MΩ between L/N-PE (500VDC;1 min) I-Ⅲ acc.to IEC60664-1 1-3 acc.to IEC60664-1
			Admissible Torque on Fixing max 3Nm

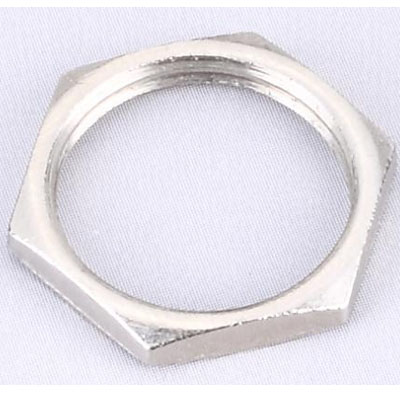

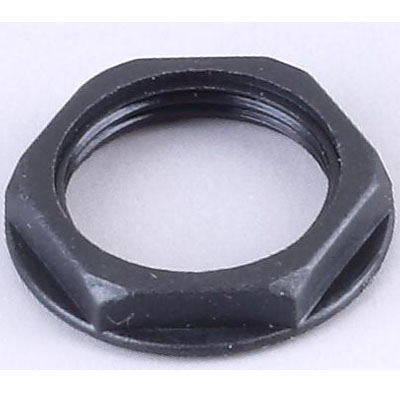

			Nut Zinc alloy plated with nickel
			Panel Thickness s max 7mm
