20mm inline fuse holder,10a,250V,H3-89 | HINEW

Short Description:

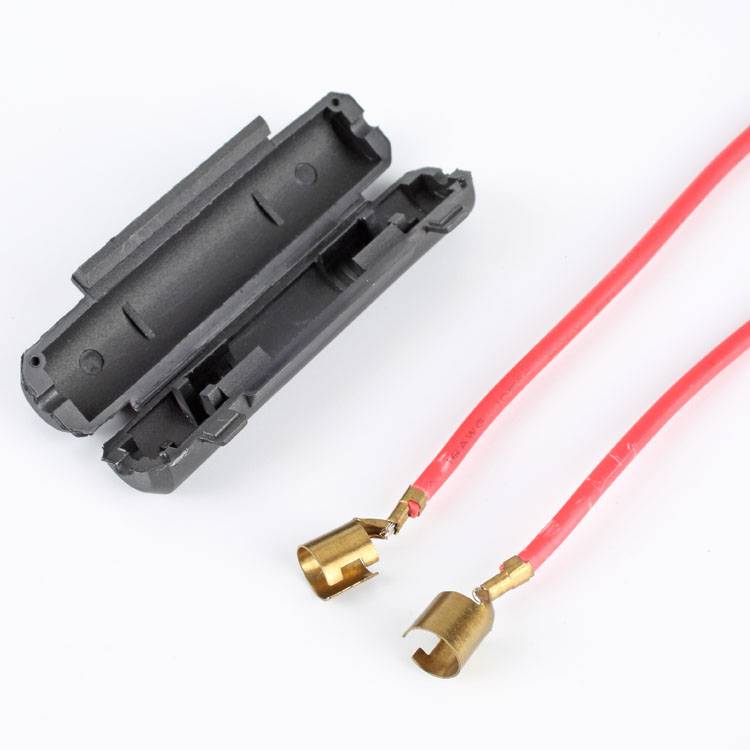

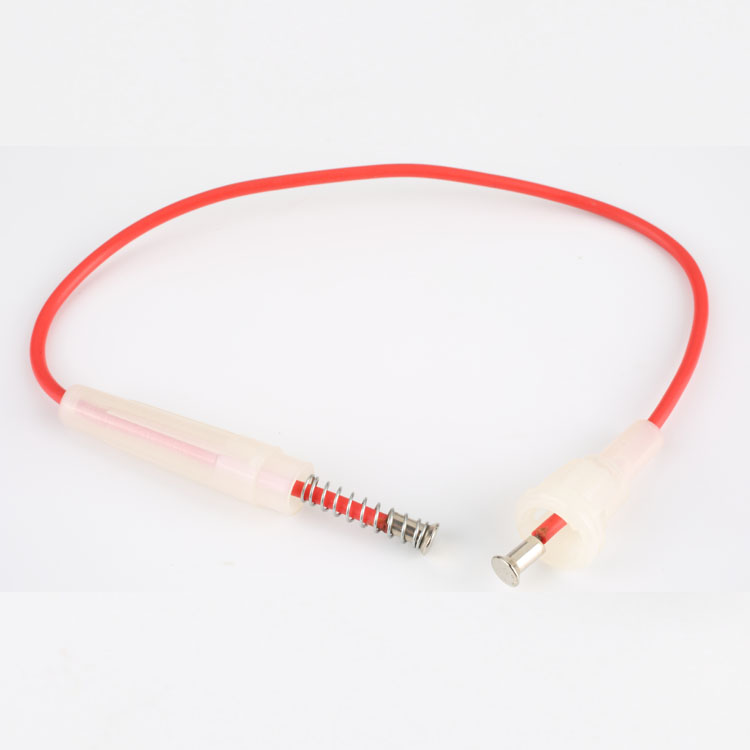

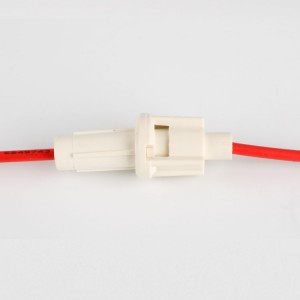

The HINEW series 20mm inline fuse holder is designed to hold 5×20 mm box fuses.The enclosed support is durable and reliable, and the two-part structure is easy to install.The in-line fuse holder makes it easier to replace the fuse in the circuit when needed.H3-89 fuse holder is made of high quality material.

It usually consists of a strand of wire inside a ceramic or glass cartridge. Excess current causes the wire to heat up and eventually melt, breaking the circuit. Inline simply means that the holder for the fuse is fitted into a cable, rather than inside a piece of equipment.

Shop wherever you are, whenever you want.Buy products inline fuse holder from our wide range.Click & Collect your purchase in-store or we’ll deliver it to you.Zip pay is now available to purchase products online.Visit our Shop Online page to learn more.


  • 500 - 4999 Pieces:
  • 5000 - 9999 Pieces:
  • >=10000 Pieces:
  • Packaging Details: standard packaging:1000pcs bags/5000pcs boxes
  • Lead Time: Est. Time(days):5-15 & To be negotiated
  • Supply Ability: Carton/Cartons per Day Sufficient supply, in stock
  • Product Detail

    Product Tags

    20mm inline fuse holder is a simple device that do an extremely important job. They provide a housing for a fuse to act as safety device within a wiring circuit for when power loads exceed the safe level for electronic components.

    In order to apply fuses in a vehicle, it must have an automotive fuse holder. Fuse holders are mechanisms that are used to carry and shelter fuses. Inline fuse holders are made in various sizes to be able to carry the different fuses amperage available. The covered fuse holder comprises of fuse carrier fitted onto the holder so that it completely covers and provides protection to the fuse inside.

    Specifications

    Electrical Characteristics Value
    Brand Name HINEW
    Model H3-89
    Type Inline fuse holder
    Rated Current 10A
    Rated Voltage: 250V
    Fuse Size: 5x20mm
    Material Phenoric resin
    Colour Black

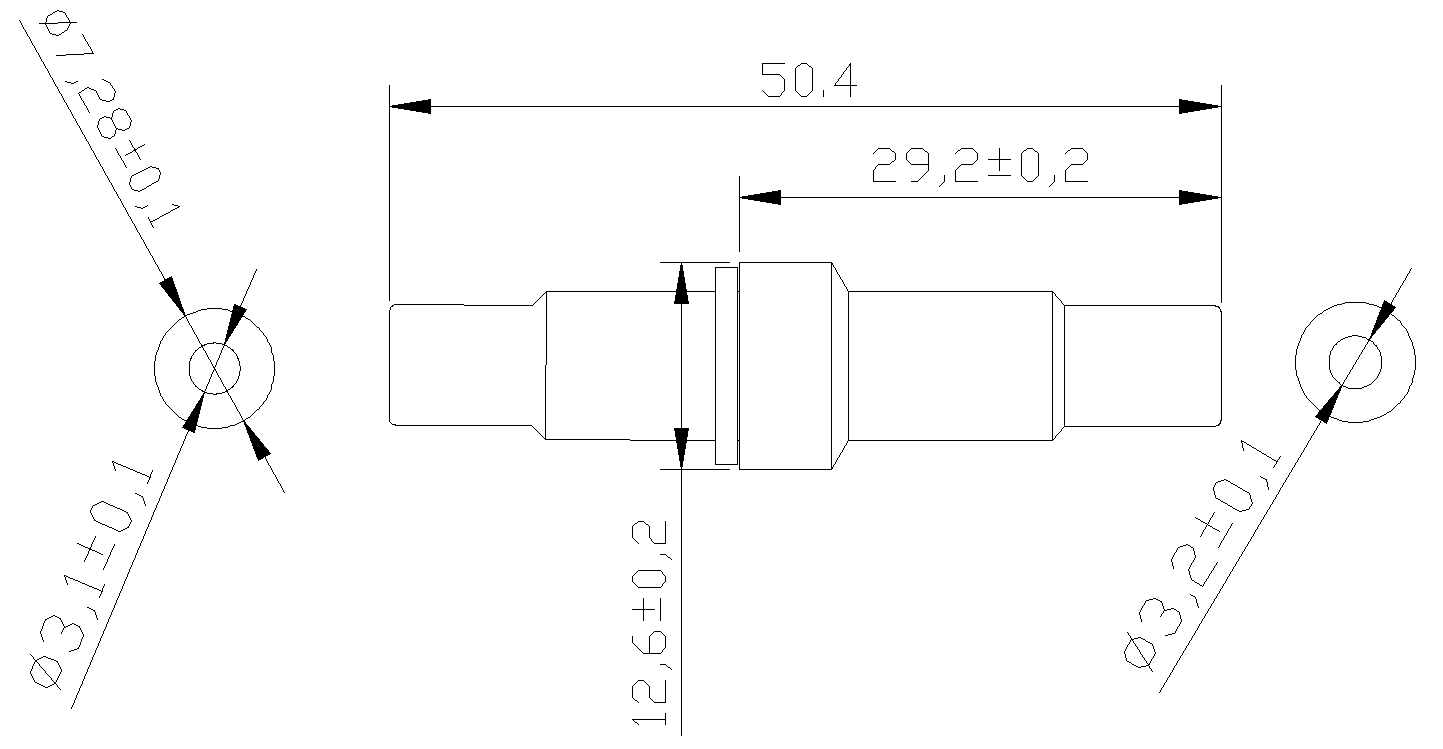

    Inline fuse holder 250v H3-89 Datasheet

    Inline fuse holder 250v H3-89 Datasheet
