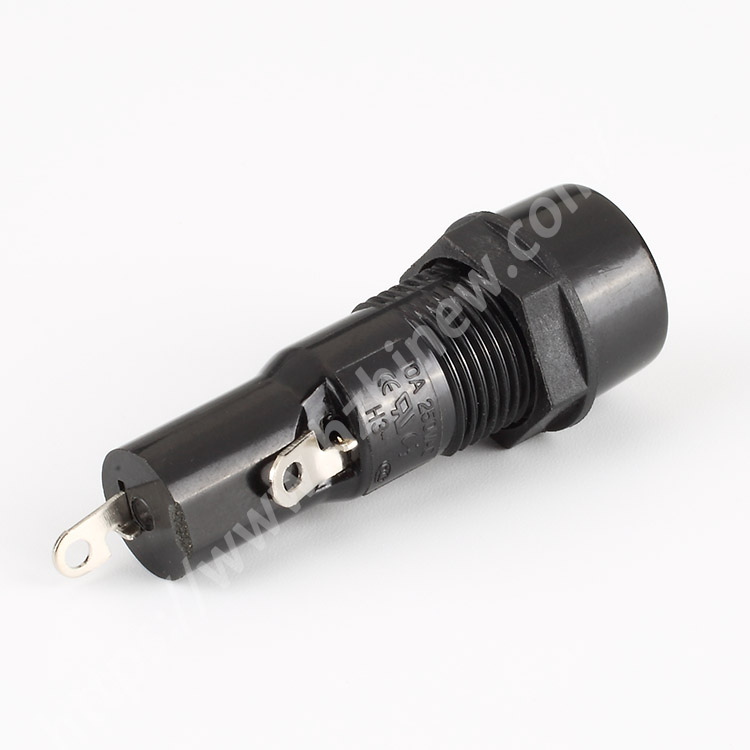

Panel fuse holder,30a,250v,6x30mm,H3-14 | HINEW

Short Description:

Panel fuse holder will come in one of two forms; plastic or metal. The plastic fuse holders will be cheaper than their metal counterparts.Plastic fuse holders can also offer a light, as in a Blown-Fuse Indicator, while metal fuse holders do not.They have a removable cap for installing and removing fuses. They’re used with glass fuses for protecting low-current circuits or ceramic fuses for protecting high-current circuits.The locking nut holds the panel fuse holder in place and the recessed screw cap retains the fuse for easy insertion and removal.Shop wherever you are, whenever you want.Buy products online from our wide range.Click & Collect your purchase in-store or we’ll deliver it to you.




  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

    These panel fuse holder is compatible with round fuse holder. They're used with Class CC fuses to provide overcurrent protection of branch circuits, control circuits, lighting, transformers, and general loads. They're used with midget fuses to supplement the primary branch-circuit fuse or breaker and provide backup overcurrent protection for lighting, solenoid, motor, and transformer circuits.

    Applications:

    Circuit and component protection

    Electric motors

    Compressors

    Lighting

    Electric pumps

    Anywhere environmentally sealed circuit protection is needed for high vibration applications in the truck & bus, agriculture, construction, marine, & special vehicles industries.

    Check out our fuse holder if you think a 10x38mm fuse holder is exactly what you are looking for!

    Specifications

    Electrical Characteristics Value
    Brand Name HINEW
    Model H3-14
    Type Panel mount fuse holder
    Rated Current 30A
    Rated Voltage: 250V
    Fuse Size: 6x30mm
    Material PBT
    Colour Black

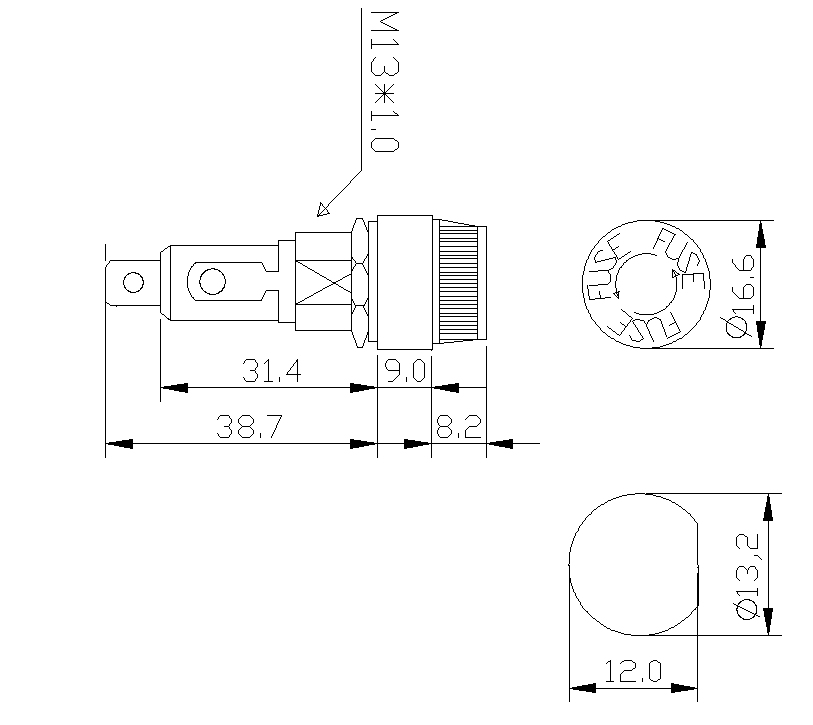

    Panel fuse holder H3-14 Datasheet
