5x20mm fuse holder panel mount-H3-28 | HINEW

Short Description:

1.Voltage breakdown:AC2500 1minute

2.insulation resistance:DC 500V 100MΩ M

3.Rating:15A 250VAC

4.Temperature tolerance:-20 ° C -150 ° C

5.Fuse size:5*20mm,6*30mm Fuse

  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

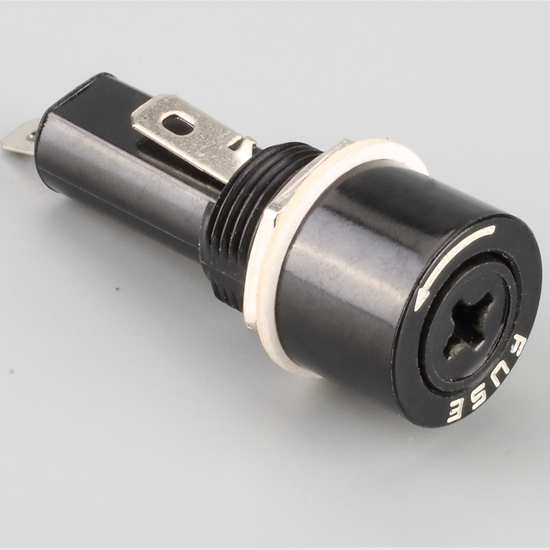

    This panel mounted fuse holder is suitable for 5 x 20mm type fuse. With screw cap and solder-lug terminals.

    Quick Details

    1.Product Name:Fuse Holder | fuse holder panel mount


    3.Voltage breakdown:AC2500 1minute

    4.insulation?resistance:DC 500V 100MΩ M

    5.Rating:15A 250VAC

    6.Temperature tolerance:-20 ° C -150 ° C

    7.Standard:IEC-60335-1 GB_9364.6-2001

    8.Certification:ISO9001, ROHS,

    9.Mounting Ways:Panel installation

    10.Material:Thermosetting glue, Huang Tongtong

    11.Fuse size:5*20mm,6*30mm Fuse

    12.Application:It is suitable for panel installation of all electrical and electronic equipment, testing equipment and sound equipment.
