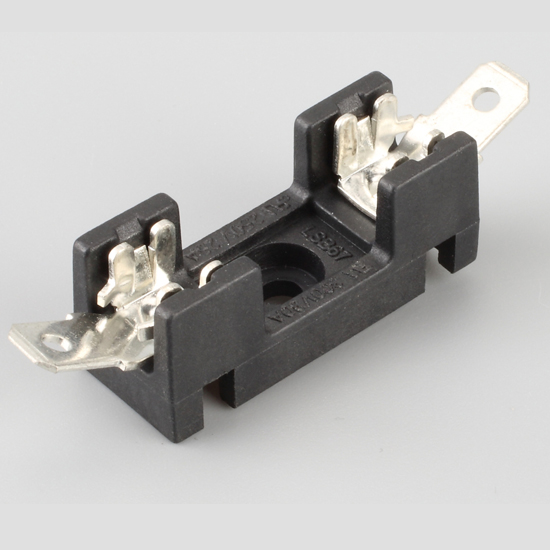

pcb fuse holder 5×20,30A 300VAC,-20℃ -150 ℃ | HINEW-H3-67

Short Description:

Fuse Holders 5 x 20mm

Quick-acting

Similar to fast-acting, this fuse blows very quickly when overloaded.

Time-delay

Similar to time-delay, the fuse allows the overload to exist briefly before blowing.

Low-breaking capacity

A minimal ability of the fuse to remain physically intact when overloaded. A low-breaking capacity fuse is readily subject to being physically destroyed if the current surge is great enough.


  • Cheap fuse holder panel mount:
  • Well and High Quality Control:
  • Prompt Delivery:
  • Customer’s Designs and Logos are Welcome:
  • Competitive Prices:
  • Product Detail

    Product Tags

    1.Product Name:Fuse Holder/20mm pcb fuse holder

    2.model:H3-67

    3.Voltage breakdown:AC2500 1minute

    4.insulation resistance:DC 500V 100MΩ Min

    5.Rating:30A 300VAC

    6.Temperature tolerance:-20° C -150° C

    7.Standard:IEC-60335-1 GB_9364.6-2001

    8.Certification:ISO9001, ROHS,

    9.Mounting Ways:PCB Mount

    10.Material:Hot Silicone PBT, Brass

    11.Fuse size:5*20mm Fuse

    12.Application:Suitable for circuit board installation of all electronic appliances, power supplies and other equipment



    H3-67

    H3-67-1

     You can easily get our pcb fuse holders near in your city like New York、London、Delhi etc.
