Blade fuse holder pcb mount,10A,250VAC,5X20mm | hinew-H3-10

Short Description:

  1. Model:H3-10A,H3-10B.
  2. Voltage breakdown:AC2500 1minute
  3. insulation resistance:DC 500V 100MΩ Min
  4. Rating:10A 250VAC
  5. Temperature tolerance:-20 ° C -150 ° C
  6. Standard:IEC-60335-1 GB_9364.6-2001
  7. Certification:ISO9001, ROHS,
  8. Mounting Ways:PCB Mount
  9. Material:Hot Silicone PBT, Brass
  10. Fuse size:5*20mm Fuse
  11. Application:Suitable for circuit board installation of all electronic appliances, power supplies and other equipment

Product Detail

Product Tags

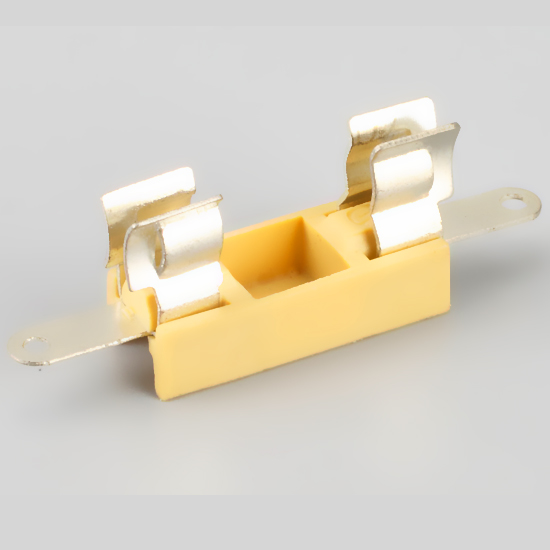

The HINEW H3-10 PCB fuse holder consists of two separate socket terminals, which are made of brass and pre-assembled to a nylon base for 10 amp applications.Socket contacts hold the fuse firmly, ensuring good connections and low contact resistance.

Product features:

The bracket is equipped with tinned nickel plated brass contacts to protect and support the mounted fuse from shock and vibration

Current (ampere):10A

PCB applications can be mounted on the surface (SMT) and through hole (THM)

Moisture-proof and water-proof fuse holder, make sure your electrical connections are water-proof;
